Can i buy retail grocery robot sample for testing?
Yes, we have mobile robot platform with basic functions for your preliminary stage testing.
focus on robot ODM

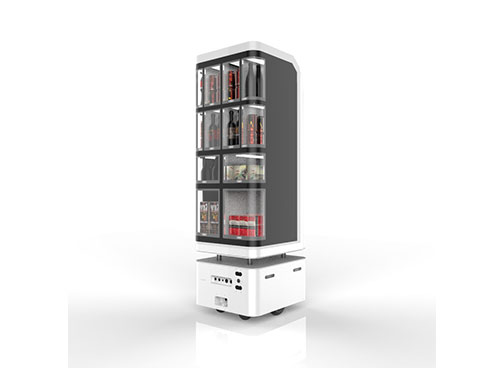

The grocery store inventory robot uses simple and effective modular design, contactless delivery, so that the service is more peace of mind. Our grocery robot relies on self-developed positioning and navigation technology to ensure positioning accuracy and flexibility.
1. Unmanned Vending
2. Self-settling
3. Autonomous Navigation
4. Fixed Route Cruise
5. Intelligent Obstacle Avoidance
6. Autonomous Charging
7. Fast Power Exchange
Yes, we have mobile robot platform with basic functions for your preliminary stage testing.
Hospitals, hotels, streets, parks, schools, squares.
We've been an OEM/ODM delivery robot company since 1995, and we've experienced over 100 successful autonomous delivery robot project worldwide.
We can be your partner to support your idea to mass production, and our project team will take part in the solution from design, development, tooling, manufacture, and after-sales Services support.
| Model No: A406 | ||||
| Body & Tray | The sealed case for sale (custom design available upon request) | |||
| Load Weight | The maximum total load capacity of the chassis 60KG (weight can be customized) | |||
| Operating | Climbing angle ≤9 °, ramp height ≤ 10CM | |||
| Maximum operating speed 0.8M/S (speed adjustable) | ||||
| Indoor navigation operation + semi-outdoor navigation operation (within 40 meters of the open area, low-speed driving may not drive into the motorway and vehicle mix) | ||||
| Obstacle Crossing | ≤1CM | |||
| Wheel Hub Design | Master wheel with motor control*2 + driven wheel*4 | |||
| Navigation Positioning Accuracy | ±50mm | |||
| Robot System | ROS | |||
| Navigation and Barrier Avoidance | Autonomous planning navigation and obstacle avoidance, SLAM and multi-sen | |||
| Sensors | Monocular Camera | 2 | ||
| RGBD Camera | 1 | |||
| Infrared Night Vision Sensor | 4*2 | |||
| LIDAR | 1 | |||
| Ultrasonic Radar | 3 | |||
| IMU | 1 | |||
| Collision Avoidance | Chassis front bumper + crash emergency switch | |||
| Speaker | Support | |||
| Microphone | Body Design Can Add as Needed | |||
| Powertrain | Battery | Rated Voltage: 36V | ||
| Capacity:20Ah | ||||
| Endurance time: Greater than 6H (no load) | ||||
| Charging | Charging method: Manual charging / automatic charging (to achieve low-battery automatic homing charging) | |||
| Charging time:4H | ||||
| Robot Router | Dual-band: 2.4GHz+5.8GHz, 802.11 a/b/g/n/ac | |||
| Function | Unsold | |||
| Self-settlement | ||||
| Autonomous Navigation | ||||
| Fixed route cruising | ||||
| Smart Obstacle Avoidance | ||||
| Self-charging | ||||
| Quick power change | ||||
| Housing | Metal | |||
| Waterproof | Customizable IPX4 waterproof rating | |||
| Temperature & Humidity | Operating Temperature | 5℃~50℃ | ||
| Operating Humidity | 0~80% | |||
| Storage Temperature | -20℃~65℃ | |||
| Storage Humidity | 0~80% | |||
